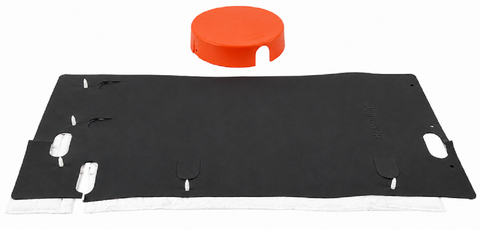

Trane BAYSDEN004 Sound Blanket Enclosure

The Trane BAYSDEN004 Sound Blanket Enclosure serves as a critical noise attenuation solution for Quest scroll compressors and reciprocating units in residential or light commercial HVAC systems. This OEM component is the direct replacement for KIT08413, designed specifically for large-frame compressors with dimensions up to 17.3 inches in height and 7.3 inches in diameter. Constructed from high-density, sound-absorbing materials, the BAYSDEN004 provides an effective decibel reduction of approximately 3 to 10 dBA, depending on the specific field conditions and unit enclosure. The kit involves a two-piece wrap-around design with a top cap, facilitating a precision fit around suction and discharge lines without impacting system efficiency or heat dissipation. For technicians troubleshooting outdoor unit noise complaints, this enclosure ensures a professional-grade dampening effect that maintains the acoustic quality of the condensing unit while protecting the compressor from external environmental factors.

Key Benefits

• Precision Replacement Compatibility: Fully interchangeable with KIT08413 and compatible with a wide range of Trane and American Standard outdoor models using large scroll compressors.
• Substantial Noise Mitigation: High-performance acoustic insulation targets the specific tonal frequencies of compressor vibration for significant sound dampening.
• Efficient Field Installation: The wrap-around design and included push pins allow for fast compressor service without disconnecting refrigerant lines.
• Thermal Stability: Engineered to provide sound insulation without causing compressor overheating, preserving standard operating temperatures.

Common Questions

Does the BAYSDEN004 fit all Trane compressors?
This specific kit is engineered for large-frame Quest scroll compressors. It is generally suitable for units up to 17.3" tall and 7.3" in diameter. For smaller compressors, check compatibility with the BAYSDEN001 or BAYSDEN005 series.

Will this enclosure cause the compressor to overheat?
No, Trane sound blankets are designed with high-density materials that focus on acoustic absorption while allowing necessary thermal dissipation. It will not detrimental to the compressor’s performance when installed correctly.

What is the typical decibel reduction after installation?
Technicians can expect an average noise reduction between 3 dBA and 10 dBA. The exact performance depends on the compressor model and the existing unit cabinet resonance.
