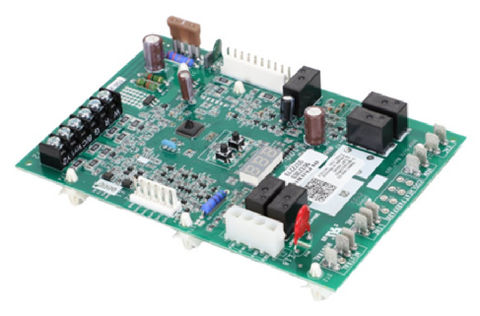

Trane CNT9646 Control Board

When you are troubleshooting a furnace failure on a job site, you need a Trane furnace control board replacement that matches the original factory specifications exactly. The Trane CNT9646 control board is a genuine OEM HVAC control module designed to regulate ignition sequences, blower motor timing, and gas valve operation with total precision. This specific integrated furnace control serves as the direct replacement for CNT7639, addressing common issues like erratic burner behavior or failed blower relays in Trane and American Standard residential units. As a technical professional, you know that using an OEM HVAC replacement part is critical for maintaining the specific safety timings and flame rectification circuits engineered for the unit. This HVAC circuit board repair solution ensures the system operates within its original efficiency parameters, providing reliable flame sensing and thermal limit monitoring across commercial and residential air handlers.

Key Technical Benefits:

• Direct Replacement Logic: Engineered to provide immediate backward compatibility for the CNT7639, eliminating field modifications during furnace control board assembly swaps.
• Precise Component Management: Orchestrates the draft inducer motor, igniter, and blower cycles to ensure smooth combustion and optimal heat exchange.
• Enhanced Board Reliability: Manufactured with high-grade traces and relays to withstand the thermal cycling and voltage fluctuations typical in HVAC environments.
• OEM Safety Compliance: Maintains the integrity of the system’s safety loop, providing accurate diagnostics and fault code signaling for faster future troubleshooting.

Common Technical Questions:

What model does the CNT9646 replace?
This module is the official successor and direct replacement for CNT7639. It is designed to fit the same footprint and wiring harness configuration for a seamless drop-in installation.

How do I troubleshoot a suspected bad control board?
Check for 24V power at the transformer, verify the status of the on-board LED flash codes, and ensure the flame sensor signal is reaching the Trane CNT9646 correctly. If the board fails to energize the inducer or igniter despite proper input signals, a replacement is necessary.

Is this compatible with variable speed blowers?
Compatibility is dependent on your specific Trane or American Standard model number. This board typically manages standard PSC or fixed-speed blower configurations; always verify your unit's wiring schematic before installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
