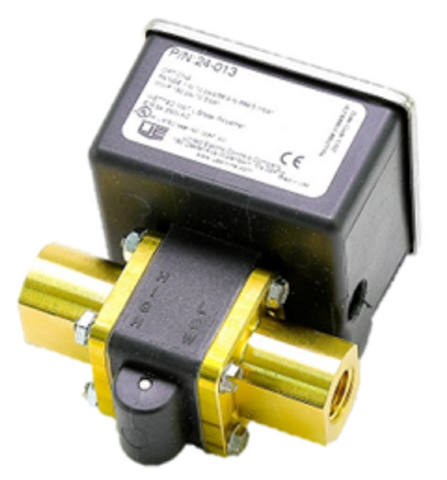

United Electric 24-013 Pressure Switch

1/10# SPDT Adj PressSwitch

24-013 is identical to 24-013-96162, 24-96162

United Electric 24-013 Pressure Switch – 1/10# SPDT Adjustable, NEMA 4

The United Electric 24-013 Pressure Switch is a high-precision, uni-directional SPDT switch designed for reliable pressure monitoring in liquids and gases. With adjustable set points and a durable NEMA 4 enclosure, it ensures accurate performance in a variety of industrial and commercial applications, including water, wastewater, glycol systems, and inert dry air.

Key Features:

• Model: 24-013

• Switch Type: SPDT (Single Pole Double Throw) with screw terminals

• Set Point Range: 1–10 PSI (6.9–69 kPa)

• Differential: Fixed 0.75 PSID (5.1 kPa)

• Repeatability: ±1% over full range

• Maximum Operating Pressure: 150 PSID (1,034 kPa)

• Operating Temperature: 30°–160°F (-1° to 71°C)

• Enclosure Rating: NEMA 4, polyester body with zinc-plated steel cover

• Housing Material: Polycarbonate with corrosion-resistant brass port

• Connection Size: 1/4″ FNPT brass fitting

• Power Required: 240 VAC

• Contact Rating: 5 A resistive & inductive @125–250 VAC; gold-clad silver contacts for low-load operation

• Wetted Materials: Polyurethane, ethylene propylene, polysulphone, brass

Applications:
Ideal for:

• Water and wastewater systems

• HVAC and glycol systems

• Industrial process control

• Air and gas pressure monitoring

Benefits:

• Precise pressure monitoring with ±1% repeatability

• Durable corrosion-resistant enclosure suitable for harsh environments

• Easy installation with front-accessible mounting holes

• External, multi-turn adjusting screw allows fine-tuning of set points

• Automatic reset by differential ensures continuous operation

Certifications & Approvals:

• UL Listed (File #E42272)

• CSA Certified

• CE Compliant

Why Choose United Electric 24-013 Pressure Switch:
With its robust construction, accurate SPDT switching, and corrosion-resistant materials, the 24-013 Pressure Switch is trusted by technicians and engineers for reliable pressure control in demanding industrial environments.
