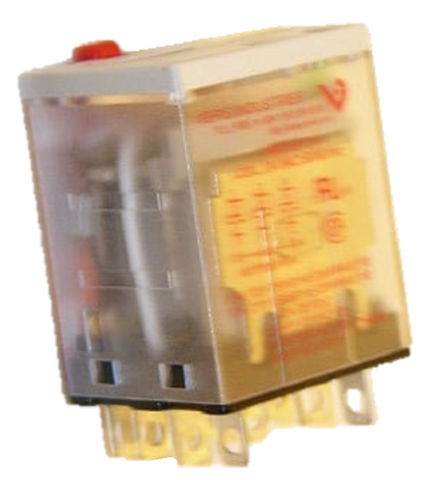

Veris Industries VMD3B-F24A Socket

Experience reliable circuit control with the Veris Industries VMD3B-F24A, a professional-grade 3PDT blade-style relay designed for demanding building automation and industrial HVACR applications. This full-featured 24VAC control relay provides a robust 15A contact rating, making it an essential component for switching multiple high-current loads in DIN rail mount or side-mount configurations. Built for veteran technicians who prioritize rapid diagnostics, the VMD3B-F24A features an integrated LED status lamp for immediate coil-on feedback and a mechanical flag indicator to confirm contact position at a glance. The color-coded manual override lever and push-to-test button allow for seamless system testing and manual circuit holding, ensuring maximum uptime during commissioning or maintenance.

The finger-safe socket terminal design significantly reduces the risk of accidental contact, while the included hold-down clip secures the relay against vibration and mechanical stress. With a 3PDT relay configuration (Three-Pole, Double-Throw), you can manage complex logic or multiple independent circuits from a single 24V control signal. Whether you are retrofitting an existing control panel or building a new 35mm DIN rail assembly, this industrial relay socket offers the mechanical endurance and technical flexibility required for precision HVACR control.

• Enhanced Troubleshooting: Combined LED, flag indicator, and push-to-test button allow for rapid diagnostics without a multimeter.
• Versatile Mounting: Supports both 35mm DIN rail and side-wall mounting to fit tight panel layouts.
• High Current Capacity: Rated for up to 15A at 120VAC, handling motor starters and resistive loads with ease.
• Secure Construction: Finger-safe terminals and a heavy-duty hold-down clip ensure long-term reliability in high-vibration environments.
• Simplified Wiring: Blade-style pins provide secure alignment and easy replacement in the field.

Can I use the VMD3B-F24A for DC switching?
Yes, the contacts are rated for 15A at 28VDC, though the coil requires a 24VAC input for operation.

Does this socket accommodate different wire sizes?
The finger-safe screw terminals are designed to handle standard 12-22 AWG copper wiring typical in control panels.

How do I verify the relay status manually?
The red push-button allows for momentary testing, while the override lever can be engaged to lock the contacts in the powered position for extended testing.
