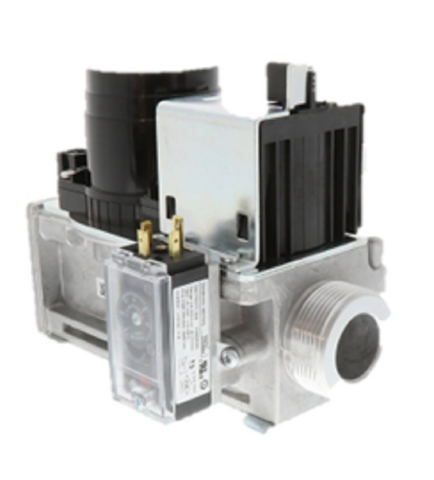

Viessmann 7839824 Gas Valve

The Viessmann 7839824 Gas Valve is a critical replacement component engineered for the Vitodens 200-W B2HA series, specifically the 399 and 530 models. As a CES-Big gas valve, this unit is designed to handle the high-input demands of commercial and large-scale residential condensing boilers. Operating on a 120V/1/60 power supply, it ensures precise fuel regulation and consistent combustion performance. Technicians should note its integration with the burner control system to maintain strict safety parameters and operational efficiency. The robust construction of this OEM Viessmann part facilitates a direct fit, reducing labor time during field replacements. When troubleshooting ignition cycles or flame rectification issues on B2HA 112 and 150 units, verifying the integrity of this valve is essential. This gas burner control valve is a vital link in maintaining the low-emission output and high-turndown ratios characteristic of the Vitodens line.

• Specifically calibrated for high-capacity Vitodens 200-W B2HA 399/530 boiler chassis.
• Provides precision gas flow regulation to support efficient condensing technology.
• Direct replacement for Viessmann 7839824 to ensure secondary safety shutoff compliance.
• Built to withstand the rigorous duty cycles of large-scale gas-fired heating systems.
• Reliable 120V 60Hz single-phase electrical interface for standard North American burner configurations.

Is the Viessmann 7839824 compatible with smaller B2HB models?
No, this CES-Big gas valve is specifically sized for the higher BTU inputs of the B2HA series (399/530) and is not cross-compatible with smaller residential units like the B2HB series.

What are the symptoms of a failing gas valve in a Viessmann boiler?
Common indicators include persistent "F4" or "EE" error codes, failed ignition attempts despite a strong spark, or irregular CO2 combustion readings during high-fire modulation.

Does this valve require specialized tools for installation?
While standard wrenches are used for the mechanical pipe connections, a calibrated digital manometer is required to set the inlet gas pressure and offset according to the manufacturer's technical manual.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
