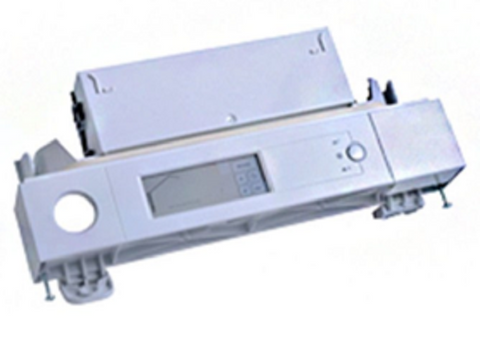

Viessmann 7870769 Control Console

The Viessmann 7870769 Control Console is a critical OEM replacement component engineered specifically for Vitodens 100-W B1HA and B1KA v5 gas-fired condensing boilers. As a direct technical cross-reference for the retired 7866187 module, this console provides the essential interface for advanced system monitoring, parameter configuration, and diagnostic feedback. It is designed to integrate seamlessly with Viessmann B1HA278 and B1KA-125 burner control logic, ensuring precise modulation and safe combustion cycles.

This authentic Viessmann boiler parts assembly features a high-contrast digital display for real-time data monitoring and supports multiple heating circuit configurations. Installation requires professional commissioning by a licensed technician to set gas types and parameter sets matching the specific boiler serial number. Utilizing genuine Viessmann replacement controls ensures long-term operational stability and compatibility with existing sensor harnesses, including outdoor reset and flow sensors.

Key Technical Benefits:

• Broad Compatibility: Directly supports B1HA v5 and B1KA v5 series, including models B1HA278, B1HA279, and B1HE-120.
• OEM Reliability: Direct cross-reference 7870769 for 7866187 maintains original factory specifications for safety and performance.
• Advanced Diagnostics: Allows access to fault codes (0B, 38, etc.) and system history for rapid HVAC troubleshooting.
• Parameter Adjustment: Enables precise configuration of gas types (Natural Gas/Propane) and heating setpoints via a user-friendly technician interface.

Common Professional Questions:

Is the 7870769 a direct replacement for the 7866187?
Yes, the 7870769 is the current Viessmann OEM cross-reference for the 7866187. It is physically and electronically compatible with the B1HA and B1KA v5 chassis.

Does this unit come pre-configured from the factory?
While the hardware is ready for installation, the technician must manually set the parameter set number and gas type during commissioning to match the specific 16-digit boiler serial number.

Can I use this on older WB1B or WB1A series boilers?
No, this control console is specifically designed for the v5 (version 5) electronic platform and is not backward compatible with earlier Vitodens 100-W generations.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
