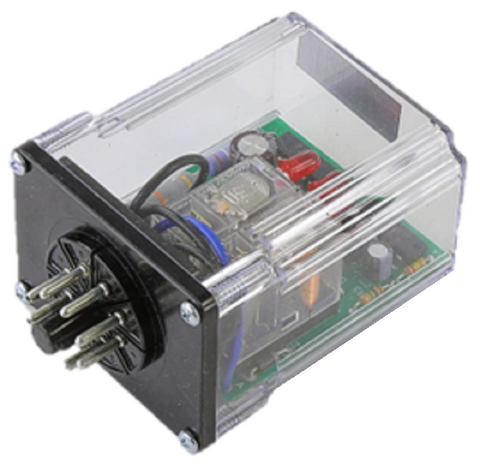

Warrick AM1M2 Alternator

The Warrick AM1M2 Alternator is a specialized 120V pump alternator control engineered for duplex pump systems requiring precise lead/lag sequencing. This alternating relay is essential for balancing runtime between two pumps in sump, sewage, and HVAC condensate applications, effectively preventing uneven mechanical wear and reducing the risk of seal failure or motor seizure due to inactivity. Designed for seamless control panel integration, the AM1M2 works in tandem with level controls and float switches to ensure system redundancy. If one pump fails or high-demand conditions occur, this pump control relay maintains readiness for the secondary unit. This compact component is a standard for contractors looking to improve system reliability and ensure backup pump availability during peak loads. Proper wiring configuration and load matching are required to maintain sequence integrity within the control circuit.

Key Benefits:

• Automatic pump alternation ensures equalized motor runtimes.
• 120V AC operation integrates directly with standard residential and commercial control circuits.
• Hard-wired duplex system control minimizes the risk of primary pump burnout.
• Compact footprint allows for easy installation in new or retrofit HVACR control panels.
• Robust switching logic maintains lead/lag operation across multiple cycles.

Common Questions:

How does a duplex pump alternator work?
The AM1M2 toggles the electrical load between two separate pump motors on each successive activation cycle, ensuring both units remain operational and wear at the same rate.

Can I use the AM1M2 with 240V pumps?
The AM1M2 itself requires a 120V supply for its internal logic; however, it can be used to trigger motor starters or contactors that handle higher voltage loads in a duplex pump controller setup.

What is the benefit of a lead/lag setup in sewage lift stations?
It prevents motor degradation from stagnant periods and ensures that if the lead pump cannot keep up with the inflow, the lag pump is ready to assist or take over.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
