Weil McLain 511-246-392 Drain Valve

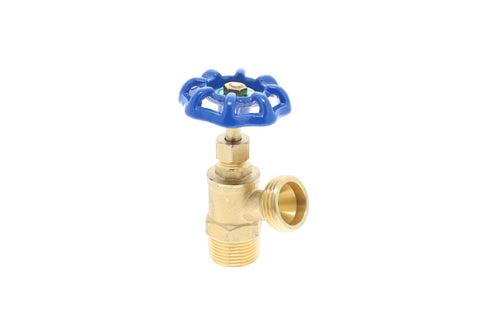

The Weil McLain 511-246-392 is an OEM 3/4-inch NPT boiler drain valve used to drain, flush and service hydronic heating systems on select Weil McLain residential and light commercial boilers. The photo shows a solid brass valve body with a blue painted wheel handle, a hex packing nut around the stem, a male pipe-thread inlet on the bottom and an angled outlet with external threads for a hose connection. Installed at the low point of the boiler, it gives the technician a controlled way to empty the vessel or flush out sediment without opening up the piping.

A boiler drain is a small part that does a lot of work. Closed, it keeps the system water inside the boiler under operating pressure; open, it lets you attach a hose and drain the boiler for service, flush out sediment and magnetite, purge air after refilling, add or replace inhibitor or cleaner, or winterize a seasonal system. Because it is used so rarely, the original valve often seizes, weeps at the stem or fails to shut tightly after years of sitting; a drain valve that drips into a closed system also quietly feeds make-up water and fresh oxygen into it, which accelerates corrosion. Confirm the 3/4-inch NPT thread and the boiler model against 511-246-392 before ordering.

To replace the valve, shut off the power and fuel to the boiler and let the water cool completely, since hot boiler water can cause serious scalds. Relieve pressure, drain the boiler below the valve level, and unthread the old drain with a properly sized wrench. Clean the boiler tapping, apply a pipe-thread sealant rated for heating water to the male threads, and thread the new valve in snugly — do not overtighten brass into the cast tapping. Close the valve, refill and purge the system, bring it up to pressure and check the valve stem and thread joint for weeping. A hose cap or plug on the outlet is a good habit that stops slow drips and protects the outlet threads.

Key Benefits

• OEM Weil McLain Replacement: The factory-specified 3/4-inch drain valve for select Weil McLain boilers, so the thread and body fit the original tapping.
• Solid Brass Body: Brass construction resists corrosion in hydronic water and holds up to repeated opening and closing.
• Hose-Ready Outlet: The angled threaded outlet accepts a drain hose for quick, controlled draining and flushing.
• Easy-Turn Wheel Handle: The wheel handle gives positive control when opening slowly, which helps keep the flow steady and manageable.

Common Questions

• What size is this drain valve? The Weil McLain 511-246-392 has a 3/4-inch NPT inlet connection.
• What is it used for? Draining, flushing and servicing a hydronic heating system from the boiler's low point.
• Why replace a drain valve that still turns? A valve that weeps or will not seal feeds fresh water and oxygen into a closed system, which speeds up corrosion; replacing it is inexpensive insurance.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
