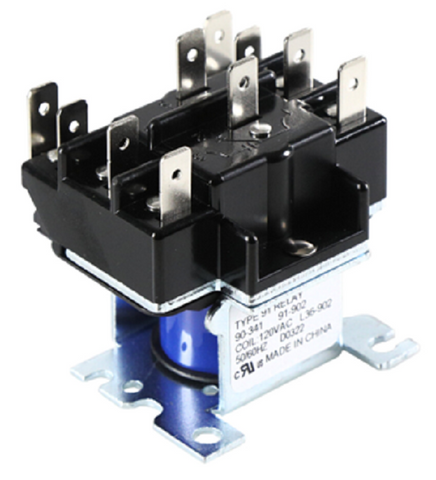

White-Rodgers 90-341 Relay

The White-Rodgers 90-341 Relay is a heavy-duty, semi-enclosed 2PDT 120V power relay engineered for reliable switching in HVACR systems, appliances, and fan control centers. As a Type 91 relay, this unit features a 120VAC coil with a 420 Ohm DC resistance and is designed for continuous duty cycles. The double pole double throw (DPDT) configuration provides two sets of power-rated contacts, making it a versatile HVAC switching relay for handling inductive loads. With 1/4-inch quick-connect terminals, it simplifies field replacements for contractors working on air handlers and vending machines.

Built for durability in demanding environments, the Emerson 90-341 operates within a temperature range of -40°F to 130°F. It is a direct White-Rodgers 90-341 cross reference for common industry parts, including the Honeywell R4222D1013 and Mars 90341. Whether you are managing a fan motor relay replacement or a general-purpose electrical load, this 120V 2PDT relay delivers 12 FLA at 125VAC and 6 FLA at 250VAC, ensuring consistent performance across high-cycle applications.

• Universal Compatibility: Serves as a standard Type 91 relay replacement for major brands like Honeywell, Mars, and Packard.
• High Load Capacity: Features power-rated contacts capable of handling up to 15A resistive at 277VAC.
• Simplified Wiring: Equipped with industry-standard 1/4-inch quick-connect terminals for fast installation.
• Reliable Performance: Designed for continuous duty with a mechanical life of up to 1,000,000 operations.

What is the coil voltage for the White-Rodgers 90-341?
This relay is equipped with a 120VAC coil (rated for 110-120V) at 50/60 Hz.

Can I use this relay to replace a Honeywell R4222D1013?
Yes, the White-Rodgers 90-341 is a functional equivalent and a common cross reference for the R4222D1013.

What are the contact ratings for this 2PDT relay?
The contacts are rated for 12 FLA / 60 LRA at 125VAC and 6 FLA / 35 LRA at 250VAC.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
