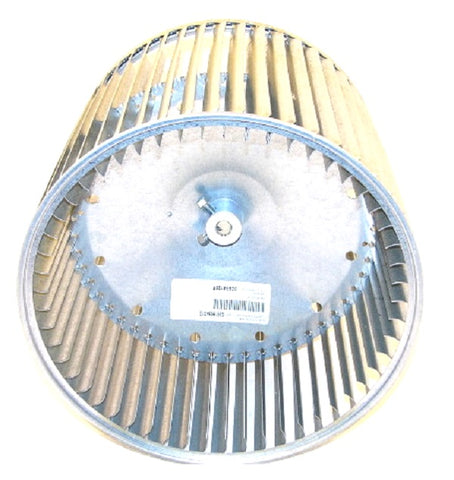

York S1-026-19654-012 Wheel

The York S1-026-19654-012 Blower Wheel is a high-performance 11" diameter by 10" width centrifugal fan component designed for precise integration into York, Coleman, and Luxaire air handlers and furnaces. As the direct replacement for 026-34501-000, this CW rotation blower wheel maintains static pressure requirements and optimal CFM output in residential and light commercial HVAC systems. This 11x10 blower wheel features a 1/2" bore size, facilitating a secure fit on standard motor shafts to minimize vibration and shaft wear.

Constructed from durable materials for industrial longevity, the S1-026-19654-012 is balanced at the factory to ensure quiet operation and reduce mechanical stress on the blower motor. This HVAC blower wheel replacement is critical for restoring airflow efficiency across heat exchangers and evaporator coils, preventing system-wide performance degradation. Technicians can rely on this OEM York part for exact dimensional matching during service calls, eliminating the need for field modifications and ensuring compatibility with existing blower housings.

Key Benefits

• Precise Airflow Dynamics: 11" x 10" dimensions engineered to meet original airflow specifications for heating and cooling cycles.
• Seamless Compatibility: Serves as the designated direct replacement for part numbers 026-34501-000 and S1-02634501000.
• Durable Construction: Built to withstand commercial duty cycles and maintain structural integrity under high RPM.
• Vibration Reduction: Factory-balanced design protects 1/2" diameter motor shafts and bearings from premature failure.
• Efficient Heat Transfer: Restores the necessary static pressure to move air effectively through ductwork and coils.

Common Questions

Is this the correct replacement for my older York furnace?
If your original documentation lists part number 026-34501-000 or the physical wheel measures 11 inches in diameter and 10 inches in width with a clockwise rotation and a 1/2" bore, the S1-026-19654-012 is the correct OEM replacement.

Which direction should this wheel rotate?
This is a Clockwise (CW) rotation wheel. Compatibility should be verified by viewing the wheel from the hub side to ensure it matches your motor's rotation and housing configuration.

Does this wheel include the set screw?
As a standard blower wheel replacement, it includes the necessary integral hub and set screw for securing the unit to a 1/2 inch motor shaft.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
