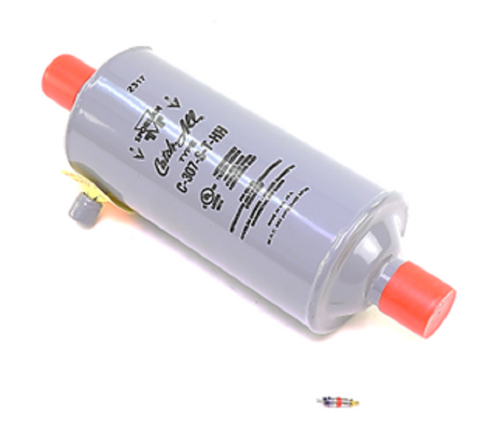

York S1-401316 C-307-S-T-HH Filter Drier

The York S1-401316 C-307-S-T-HH Filter Drier is a critical suction line filter drier engineered for effective system cleanup following a motor burnout or for protecting new installations from contaminants. This sealed-type refrigerant filter drier is identical to part number 401316 and fits a wide range of residential and commercial HVAC units. Featuring a 7/8 inch ODF solder connection, it utilizes a high-capacity 30 cubic inch molded desiccant core to aggressively capture moisture, acid, and solid debris. The specialized "HH" core formulation includes activated charcoal, making it particularly effective at removing wax and sludge that often compromise low-temperature refrigeration systems. With a pressure rating of 650 PSI, this HVAC suction drier is compatible with modern refrigerants, including R-410A, R-22, and R-134a, ensuring the compressor protection necessary to prevent premature mechanical failure.

• Burnout Recovery: Specifically designed with HH-style charcoal cores to neutralize organic acids and remove varnish after a hermetic motor failure.
• High-Efficiency Filtration: The solid molded core provides uniform desiccant distribution, preventing refrigerant bypassing and ensuring one-pass contaminant removal.
• Integrated Pressure Tap: Features a Schrader-type access valve on the inlet for accurate pressure drop monitoring across the core.
• Broad Compatibility: Rated for use with HCFC, HFC, and HFO refrigerants, supporting a diverse range of York and third-party systems.
• Robust Construction: Copper ODF sweat connections and a leakproof steel shell provide reliable performance under high-pressure conditions.

• When should I use an HH-style core instead of a standard drier? Use the York S1-401316 with the HH core specifically after a compressor burnout or when wax buildup is suspected in low-temperature systems, as standard cores do not remove wax efficiently.
• Is this drier compatible with R-410A? Yes, this refrigerant filter drier is rated for 650 PSI, making it suitable for high-pressure R-410A applications as well as R-22 and R-134a.
• How do I check if the drier is restricted? Utilize the integrated Schrader pressure tap on the inlet of the C-307-S-T-HH to measure the pressure drop; a significant differential indicates a saturated core requiring replacement.
