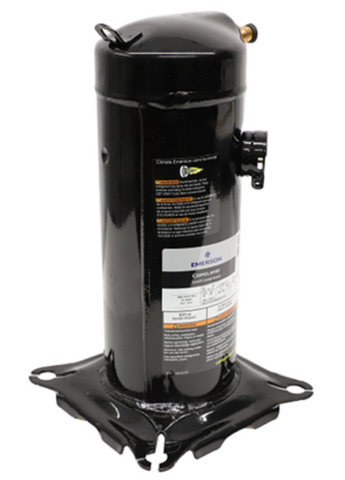

Copeland ZP24K5E-PFV-800 Compressor

230v1ph 32,800btu R-410A Comp.

ZP24K5E-PFV-800 is the direct replacement for ZP25K5E-PFV-13R

Copeland ZP24K5E-PFV-800 Compressor – 2 Ton, R-410A, 208-240V 1PH, A/C Scroll Compressor

The Copeland ZP24K5E-PFV-800 is a high-efficiency scroll compressor designed for residential and light commercial air conditioning systems. This 2-ton compressor offers 24,000 BTU/h cooling capacity and operates with R-410A refrigerant, making it ideal for modern HVAC applications.

Engineered with Copeland’s trusted reliability, the ZP24K5E-PFV-800 features a compact design, quiet performance, and durable construction for long-lasting operation. Perfect for A/C units that demand consistent and energy-efficient performance.

✅ Product Features:

• Model: ZP24K5E-PFV-800

• Capacity: 24,000 BTU/h (2 Ton)

• Refrigerant: R-410A

• Voltage: 208-240V, 1 Phase

• Horsepower: 2 HP

• Rated Load Amps: 14.3

• Oil Type: Polyol Ester

• Discharge Connection: 1/2" S

• Suction Connection: 3/4" S

• Mount Dimensions: 7.5" x 7.5"

• Run Capacitor: 40 µF x 370V

• Height: 16 inches

• Shipping Weight: 58 lbs

• Country of Origin: USA

• Application: Air Conditioning (A/C – R-410A)

🔧 Reliable Performance in Demanding Environments

The Copeland ZP24K5E-PFV-800 delivers excellent performance in cooling systems, offering low noise operation, enhanced energy efficiency, and durability in high-load applications. It’s a trusted solution for replacing or upgrading HVAC systems requiring a scroll compressor compatible with R-410A.

⚠️ Safety Notice:

Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Trusted Copeland quality. Built for performance. Made in the USA.
Ideal for HVAC contractors, installers, and OEM replacements.

Warranty policy for this compressor is one year from purchase and is only issued if an exact replacement compressor is ordered from our same vendor.

This item is not eligible for free shipping and must be shipped via trucking. Please contact us for a freight quote.
